News Story

There are several important ancient Egyptian papyri in the collections of National Museums Scotland. Discover how we conserved these beautiful and ancient objects, and our bespoke framing and glazing choices, including the first use of acrylic for the framing of ancient Egyptian papyri.

Work was undertaken on the papyri in preparation for their display in the 2017 exhibition The Tomb: Ancient Egyptian Burial about the Rhind Tomb which was used and reused for over 1000 years.

Three significant papyri entered National Museums Scotland’s collection in the mid-19th century. They had not been conserved and were poorly framed. Two of the papyri belonged to the last inhabitants of the Rhind Tomb: a Roman-era high official named Montsuef, and his wife, Tanuat. Their unique bilingual funerary papyri are dated precisely to 9BC by the inscriptions. A third papyrus, a Book of the Dead consisting of eleven fragments, belonged to a man named Useramun, who served as Egypt’s vizier (equivalent to prime minister) during the 18th Dynasty (approximately 3,500 years ago).

Conservation of the funerary papyri

At the time of acquisition, the objects were unrolled and stuck to a poor-quality brown card with an unidentified adhesive.

A yellowed, piece of paper with fragments missing featuring illustrations and hireographic text is mounted on brown cardboard. The edges of the cardboard are held by a pair of hands.
Details showing poor framing and cockled brown card backings.
Fragments of paper from ancient Egypt featuring hieroglyphs mounted on brown backing paper framed within a wooden frame.
Details showing poor framing and cockled brown card backings on Book of the Dead of Useramun.

Initial assessments of the papyri in 2016 determined that although the backing card was in poor condition, it would be too risky to attempt its removal. Conservation work focused on stabilisation of the media and support, scientific analysis of the pigments, and high-quality framing. A great challenge to the paper conservators was undoubtedly size, with the largest papyrus measuring 9 feet (276cm) in length.

Two long Egyptian scrolls displayed with one above the other. The yellowed scrolls contain illustrations and text and have some damage along the bottom.
Top: Funerary papyrus of Montsuef. Museum reference A.1956.313. Bottom: Funerary papyrus of Tanuat. Museum reference A.1956.314.

Mending the backing

The cockled brown card backings were reduced with a sharp scalpel following the contours of the object, leaving a small border around the papyrus. There were some localised tears and areas of weakness on the larger papyri, and these were supported with Japanese tissue and wheat starch paste.

Consolidation of loose, flaking or friable areas of the papyrus support and pigments was carried out under magnification with a 4% solution of Methyl Cellulose applied with a fine brush.

Two women sitting in office chairs wearing headgear with magnifying glasses and lights sit at a long write table working on a long ancient Egyptian scroll.
Paper Conservators Lisa Cumming and Victoria Hanley consolidating media and papyrus.

Repositioning of fragments

Tanuat’s papyrus had some fragments that were incorrectly positioned on the brown card. In discussion with the curator, the paper conservators removed the fragments and re-positioned them in their rightful place, thereby allowing the papyrus to be read coherently for the first time since acquisition. The treatment proved challenging due to the fragility of the support and the complex nature of realigning the fragments.

A pair of hands placing a fragment of an ancient Egpytian scroll
Repositioning some of the fragments on Tanuat’s funerary papyrus.

Pigment analysis

A vivid pink pigment is present on Tanuat’s papyrus. Although common on Roman-era burial objects, its use on a funerary papyrus is deemed quite rare. Detailed scientific analysis of the pigment was firstly conducted using ultra-violet light, which showed an orange fluorescence, a characteristic of the use of madder dyestuff.

Detail of an ancient Egyptian papyrus with illustrations and hieroglyphs, shown under lighting that highlights a fluorescent pink colour on a figure.
Fluorescence of pink pigment.

Stereo microscopy and electron microscopy analysis helped to capture dramatic images that highlighted the pink pigment’s composition. It is based on a white alunite or related pigment mixed with the pink dye. Further investigation using liquid chromatography helped to determine that the pink dye is probably rubia peregraina L., also called wild madder, a dye known to be available and in use at that time in Egypt.

A waoman sits at a table in a lab setting with an ancient Egyptian scroll laid out in front of her. There is a microscope over the scroll with details being shown on a computer screen.
National Museums Scotland’s Analytical Scientist, Dr Lore Troalen, working with the stereo microscope.

Conservation mounting

Japanese tissue hinges were adhered to the back of the papyri’s brown card at regularly spaced intervals and positioned in place to the underside of conservation grade mount board. This created a reversible mounting system for any potential repositioning requirements in the future.

A yellowed ancient Egyptian scroll mounted and laid out on a long white table with tabs of tape sticking out from each side of the mount.
Reversible mounting system.

New curatorial research led to the understanding that the placement order of the fragments of the Book of the Dead papyrus was incorrect. Curator Margaret Maitland and the paper conservators collaborated in altering their order and dividing them into three frames to devise a legible and aesthetically pleasing method of display.

Discoloured fragments of paper from ancient Egypt featuring hieroglyphs mounted on white card with wooden frames hang on a wall.
Book of the Dead papyrus framed for display. Museum reference A.1956.315.1 and A.1956.315.2 (Not pictured, A.1956.315.3).

Framing and glazing

A bespoke method of framing was sourced to fully protect these delicate objects and offer a safe and visually attractive display. John Jones Framers London offered a bespoke framing service, tailoring each frame to suit the needs of the individual object. The priority was to design a ‘front-loading’ frame to avoid placing the objects face down and putting the delicate inscribed surface at risk. Rather than sandwich the papyri between pieces of glass, a solution favoured by some museums, spacers were fitted to separate the papyri from the glazing. Both laminate glass and acrylic glazing were considered but Tru Vue 6mm, Optium Museum Acrylic® glazing was chosen for its UV protection, non-reflective, anti-scratch, anti-static properties. A sheet of 6mm was also large enough to accommodate the long papyri, was thick enough not to flex, and its lighter weight made it a good option.

Once assembled, the frames were shipped to Edinburgh as ready-made packages. The frames comprised a tulip wood sub-frame with an impermeable rigid support adhered to the top acting as a barrier layer. Fixings were attached to the back of the sub-frame prior to fitting the objects. The mounted papyri were then placed directly onto the rigid support, face-up and a plain oak moulding, fitted with Optium® acrylic and spacers fitted over the top. The moulding screwed into the sides of the sub-frame, thereby preventing any need to turn the object.

Two women examine a long anicent scroll laid out on a table in a lab setting.
Collections Services Technician Sarah Laing and Paper Conservator Lisa Cumming preparing the front-loading frame.

This project offered positive conservation challenges and opportunities for successful collaboration with internal and external partners. The papyri look stunning in their new frames and will remain safe and secure for future display and storage for years to come.

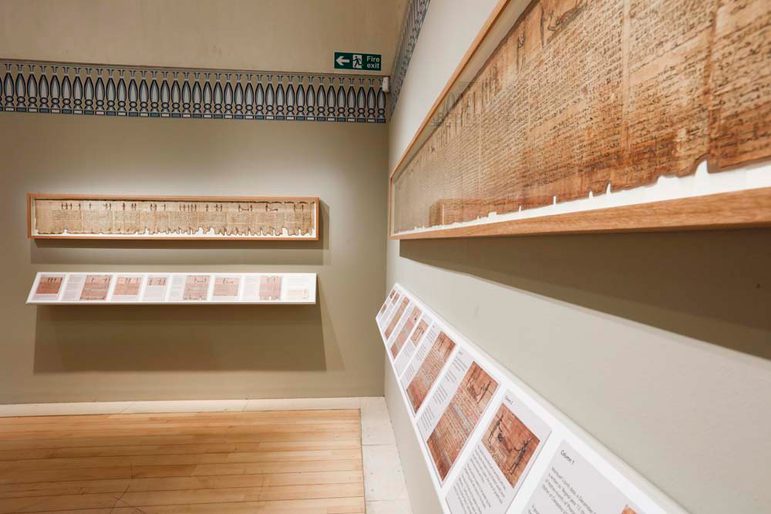

A display in a museum of framed ancient scrolls mounted on a wall.
Funerary papyri on display in The Tomb exhibition, 2017.

Several sections of the Book of the Dead of Useramun and the papyrus of Tanuat are currently on display in the Ancient Egypt Rediscovered gallery at the National Museum of Scotland.


Acknowledgements

National Museums Scotland are grateful to Tru Vue Inc. for the generous donation of Optium Museum Acrylic glazing.

Thank you to David Palmer of Wessex Pictures, who offered a complimentary cutting and delivery service of the Optium Museum Acrylic glazing.

Thanks to Frankie Wray and Matt Gray at John Jones, London.
